SoarmMoce SDK (Python) Quick Start Guide

This guide provides instructions for getting started with the soarmMoce_sdk. The SDK is integrated into the official SoarmMoce repository and supports a seamless transition from Mock simulation to real hardware control.

1. Environment Setup (Recommended: venv)

Execute the following commands in the repository root directory to ensure environment isolation and complete dependency management:

Bash

# Navigate to your local repository path
cd /path/to/Soarm_Moce

# Create and activate a virtual environment
python3 -m venv .venv
source .venv/bin/activate

# Install the SDK and development dependencies in editable mode
pip install -e ./soarmMoce_sdk[dev]

2. Configuration Files

The SDK uses a unified yaml configuration system. The default template is located at: configs/soarm_moce.yaml.

  • Path Resolution: The SDK Config Loader automatically resolves relative paths for URDF or Calibration files based on the directory where the configuration file is located.

  • Resource Fallback: If a local path is not found, the system automatically falls back to the package’s built-in resources.

3. Quick Verification (Mock Mode)

Run examples using the MockTransport without requiring physical hardware:

Bash

# 1. Basic connection test
python soarmMoce_sdk/examples/00_quickstart_connect.py

# 2. Kinematics (IK) test
python soarmMoce_sdk/examples/02_movepose_ik.py

Expected Output:

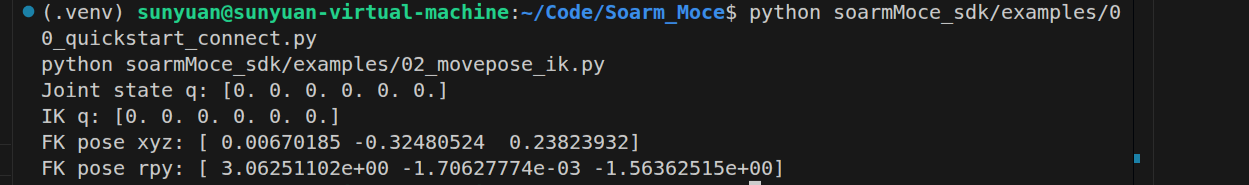

1249×185 35.4 KB

  • The terminal prints the current Joint State (Mock data).

  • move_pose(xyz, rpy) successfully triggers the IK solver and proceeds to the move_joints workflow.

4. Running Tests

It is recommended to run the test suite after any code changes to ensure core logic integrity:

Bash

pip install lark
pytest -q

Test Coverage:

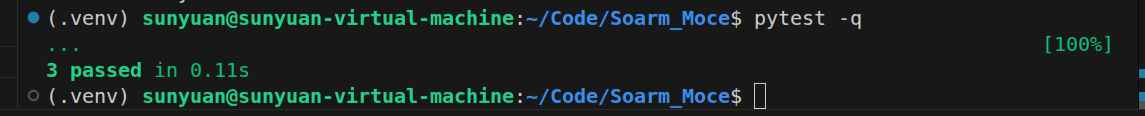

1145×116 21.1 KB

  • Safety Limits: Validation of limit and safety logic.

  • Transport Layer: Read/write logic for Mock Transport.

  • Consistency: FK/IK consistency checks ($IK(FK(q)) \approx q$).

5. Simulation Visualization

To visualize the robot arm posture, use the PyBullet simulation:

Bash

pip install pybullet
python soarmMoce_sdk/examples/03_sim.py

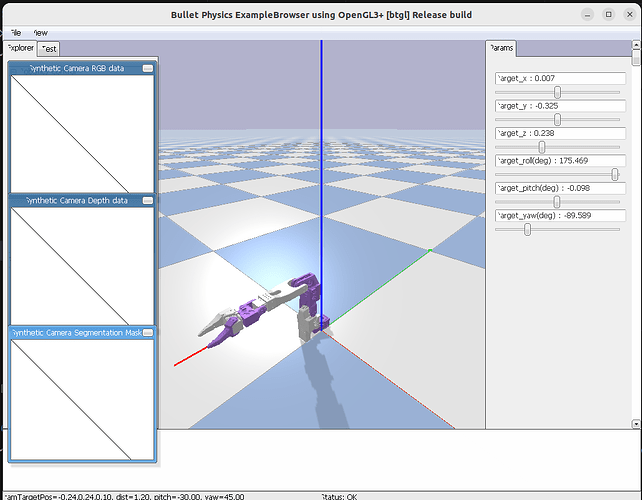

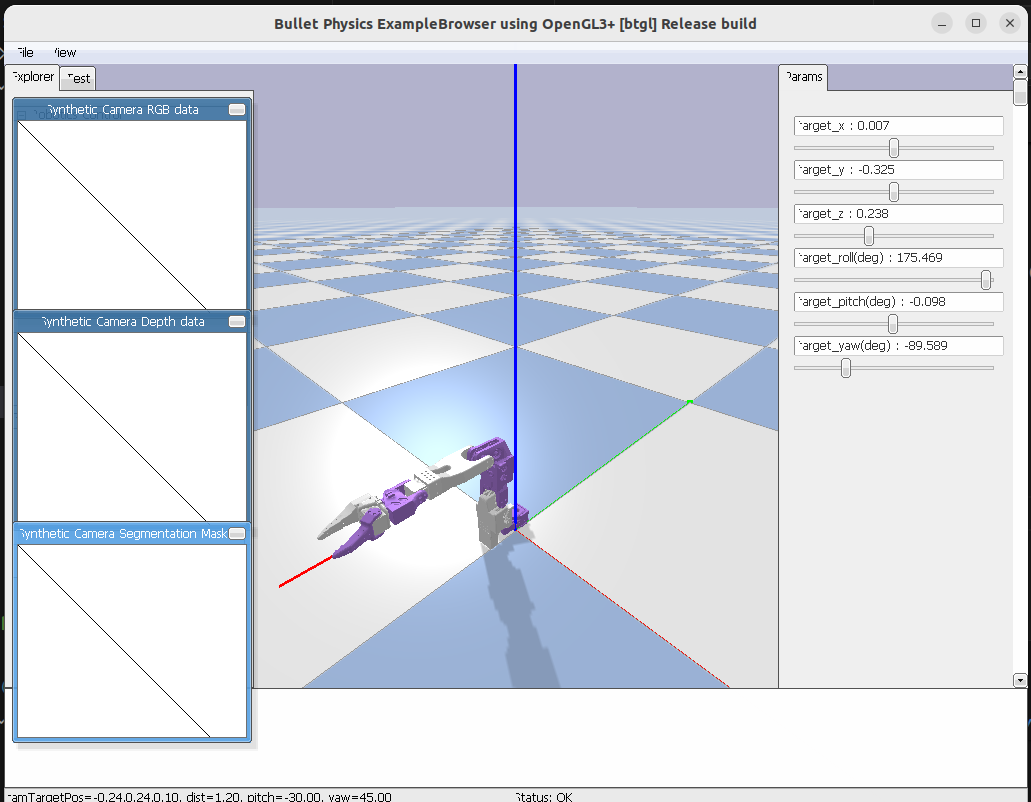

image1031×802 73.2 KB

  • Features: Automatically resolves Mesh paths in the URDF, avoiding common package:// path errors.

  • Interaction: Use sliders in the GUI to observe IK results in real-time.

6. Hardware Integration (TCP Server)

To connect to a running SoarmMoce TCP server, modify configs/soarm_moce.yaml:

YAML

transport:
  type: tcp
  host: 192.168.66.130  # Change to your Server IP
  port: 6666

protocol:
  unit: deg            # Important: Communication unit (usually deg)
  sdk_to_server_map:   # Joint mapping: SDK Name -> Server Name
    shoulder: shoulder_pan
    elbow: elbow_flex
    wrist: wrist_flex

Quick Connection Snippet

Python

from soarmMoce_sdk.api.robot import Robot

# Initialize and connect
r = Robot.from_config("./configs/soarm_moce.yaml").connect()

# 1. Get current state
print("Current q:", r.get_joint_state().q)

# 2. Perform a moveJ at current position (Loopback test)
r.move_joints(r.get_joint_state().q, duration=1.0)

r.disconnect()

Key Technical Notes:

  1. Unified Units: The SDK external interface consistently uses radians (rad). Unit conversion for the TCP layer (e.g., to degrees) is handled automatically via protocol.unit.

  2. Mapping Validation: sdk_to_server_map performs a full coverage check during initialization. Missing mappings will raise a ProtocolError to prevent incorrect axis movement.

7. Common API Reference

Python

from soarmMoce_sdk.api.robot import Robot
import math

robot = Robot.from_config("./configs/soarm_moce.yaml").connect()

# Read: Get joint state
js = robot.get_joint_state()
print(f"Joint angles (rad): {js.q}")

# Write: Joint space movement (moveJ)
robot.move_joints(js.q, duration=1.0)

# Write: Cartesian space movement (move_pose)
# Input: xyz (meters) + rpy (radians), internal IK solver is used
robot.move_pose(
    xyz=(0.20, 0.00, 0.15),
    rpy=(math.pi, 0.0, 0.0),
    duration=2.0
)

robot.disconnect()

Troubleshooting

  • Data Not Updating: Check the transport IP and port configuration; ensure the Server is active.

  • Reversed Motion / Wrong Axis: Verify sdk_to_server_map and the calibration fields in the config file.

  • IK Unreachable: Ensure the target coordinates are within the physical workspace of the robot arm.
